How Does a Toilet Flush Work?
A toilet flush operates through a combination of simple mechanics, gravity, and a clever principle of physics known as siphoning. While there are some variations, the basic process for most standard toilets is the same.
The Two Main Sections
A
toilet has two primary parts: the tank (or cistern) and the bowl. The flushing action is a synchronized dance between the components in these two sections.
Step 1: Initiating the Flush

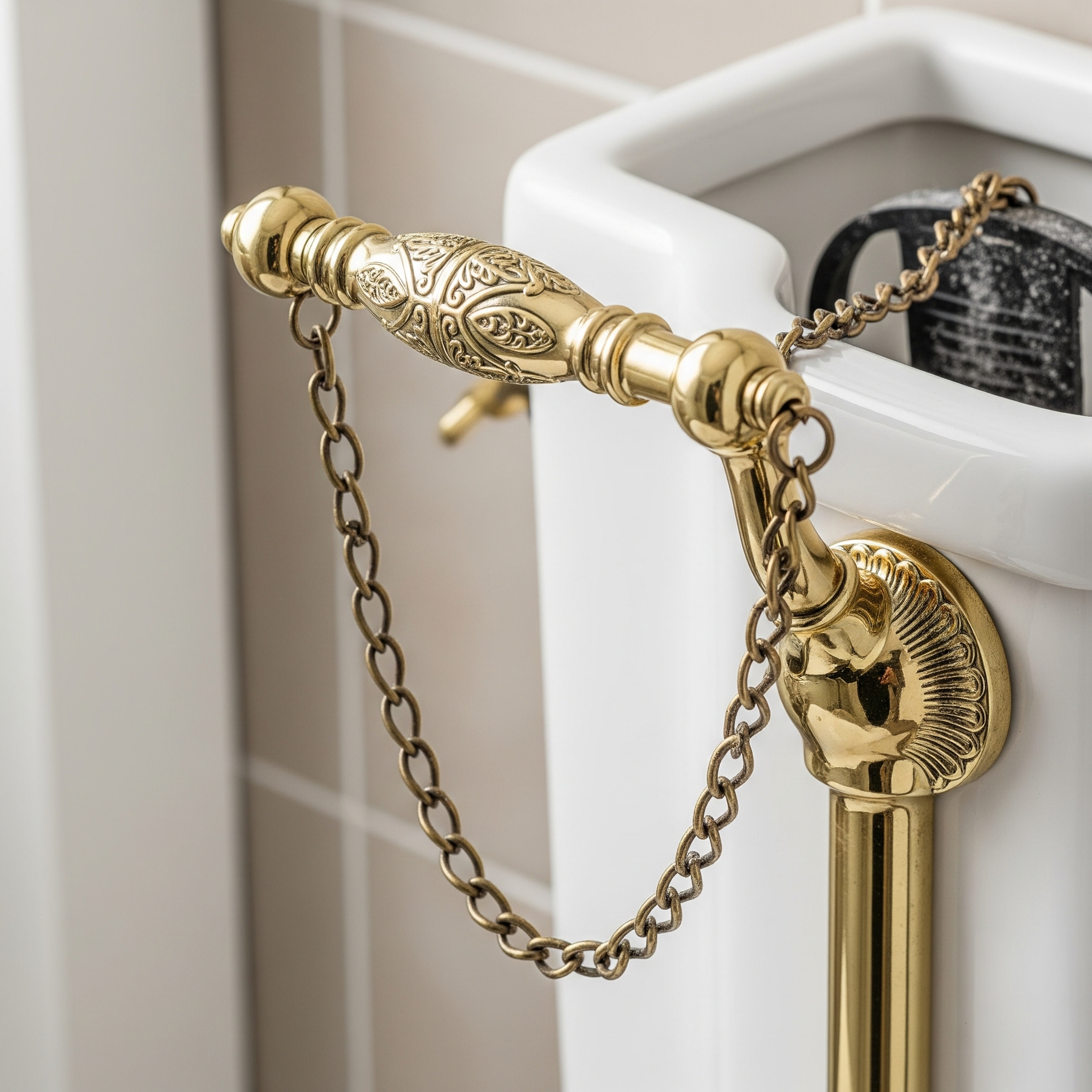

When you press the flush handle or button, a lever inside the tank lifts a rubber stopper, known as the flapper. This flapper normally seals the opening at the bottom of the tank, keeping the water inside.
Step 2: Gravity Takes Over
Once the flapper is lifted, gravity takes over. Water stored in the tank rushes into the bowl through the flush valve. This rapid influx is the driving force behind the flush. Water flows through jets around the rim and sometimes a siphon jet at the bottom, rinsing the inner surface.
Step 3: The Siphoning Action
This is the most critical and fascinating part of the process. The toilet bowl has a curved, S-shaped, or
P-shaped pipe called the trapway. The trapway is designed to always hold a small amount of water, which acts as a barrier to prevent sewer gases from entering your home.
As the large volume of water from the tank floods the bowl, it quickly raises the water level. This rising water spills over the highest point of the trapway. As it flows down the other side, the weight of the water column in the longer leg of the trapway creates a powerful vacuum, or "siphon effect." This suction force pulls all the water and waste from the bowl, clearing it completely.
Step 4: Refilling the Bowl and Tank
As the water level in the tank drops, the flapper falls back into its sealed position, stopping the flow of water into the bowl. A floating mechanism, which is part of the fill valve, drops with the water level. This action activates the fill valve, which begins to refill the tank with fresh water from your home's water supply.
At the same time, a small refill tube attached to the fill valve sends some water into the overflow tube. This water flows into the toilet bowl and refills it to the proper level. This restores the water barrier in the trapway for the next use.
Step 5: The System Resets
As the water level in the tank rises, the float mechanism rises with it. When the water reaches the predetermined level, the float triggers the fill valve to shut off the water supply. The toilet is now quiet and ready for the next flush.
